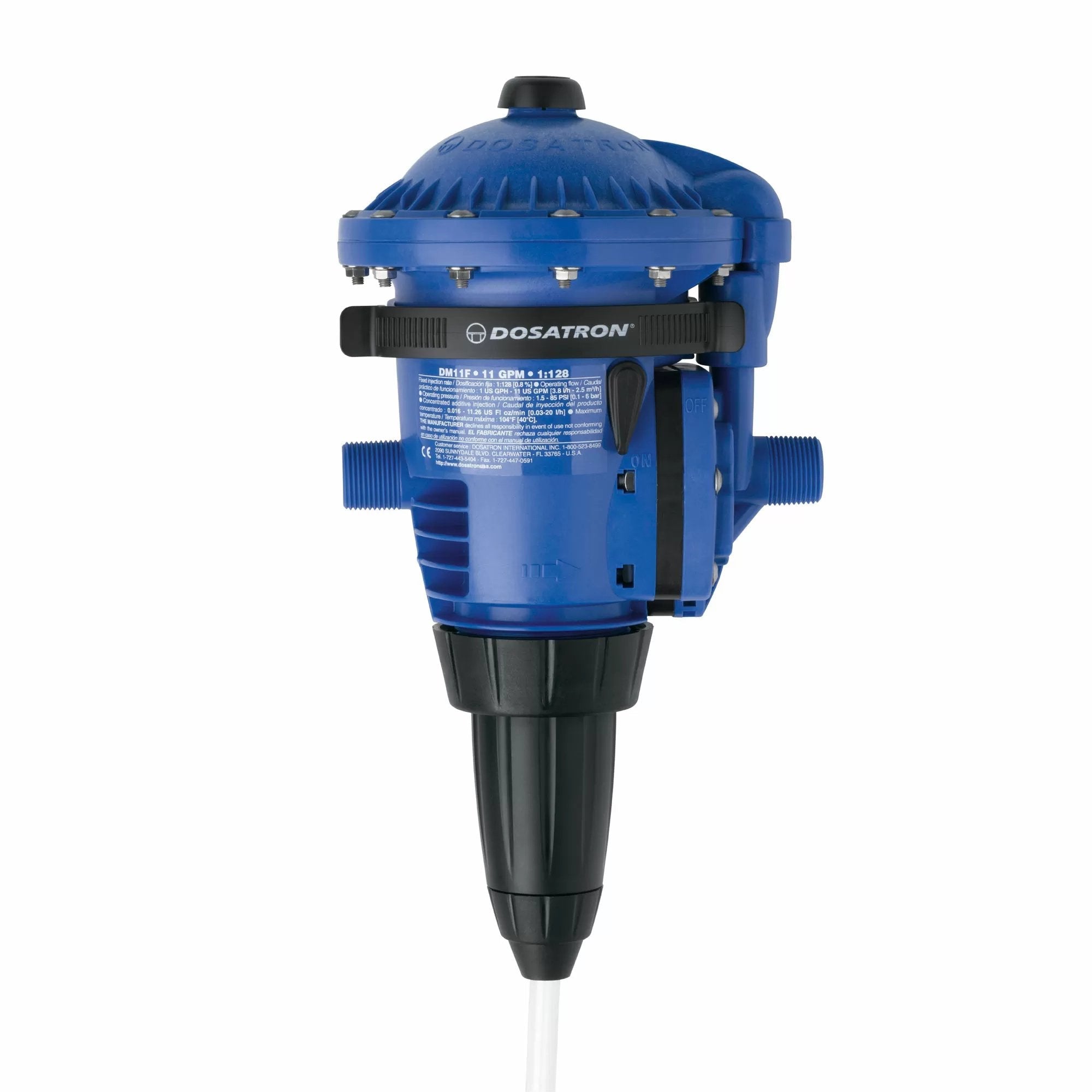

Dosatron® DM11F Diaphragm Medicator - Precision Chemical Dosing System for Agriculture, Irrigation & Water Treatment | High-Performance Liquid Injection Pump

The Dosatron DM11F Diaphragm Injector was designed for use in poor water quality areas due to sugar sand, iron, or hard water. Ideal for use with day-old chicks and weaners, this injector was built for low water flow use. Features a piston-free hydraulic motor with a highly chemical resistant housing.

Applications:Medicating, Sanitizing, Chlorinating, Vaccinating, Water Treatments, Supplements

Features/Specifications

• No Metal Parts
• Max Flow: 11 GPM
• Min Flow: 0.02GPM
• Injection Percents: 0.8%
• Injection Ratios: 1:128 Fixed
• Pressure Range: 1.5 to 85 PSI
• Housing Material: Polypropylene (Standard Blue)
• Connections: 3/4" NPT
• Maximum Temperature: 104 F
• Dimensions: 16" x 7"
• Weight: 5 lbs
• Larger Capacity: Less strain on motor parts allowing for a longer life

Dosatron DM11F Diaphragm Injector Includes: Mounting Bracket, Suction Tube, Strainer, Weighted Strainer & Quick Start Guide

A 200 mesh filter is recommended to protect equipment in the lines such as nipples, tubes, etc. - sold separately.
