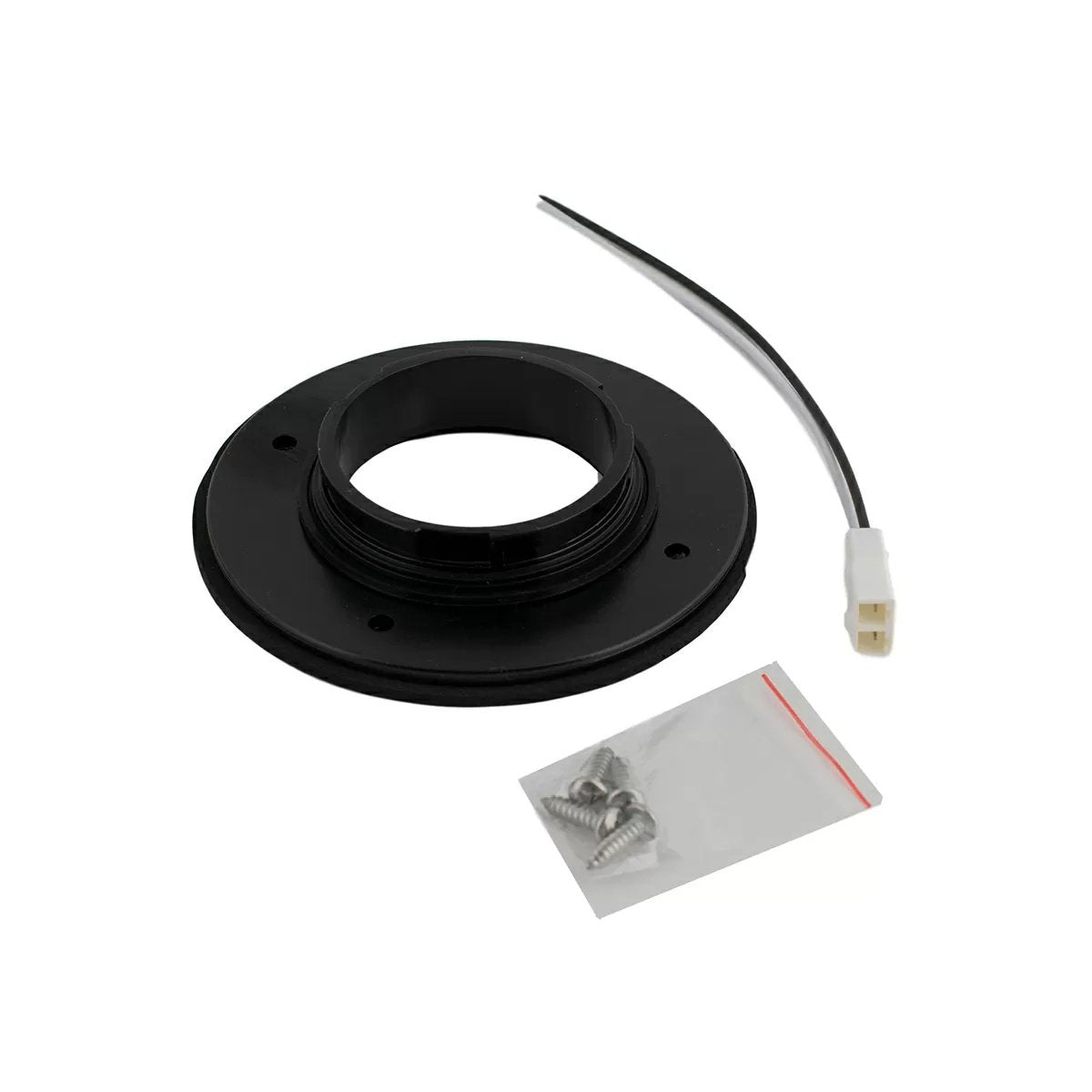

AgriShift® MLM S Swine 14W Junction Box Base - Durable Electrical Connection for Pig Farming Equipment | Perfect for Barn Wiring & Livestock Facility Installations

Evenly distribute light for both your swine herd and the humans caring for them with AgriShift MLM-S 14W Junction Box Base fixtures. These highly efficient lighting fixtures feature a red spectrum to make it easy to provide natural daylight simulation for improved productivity.

The AgriShift MLM-S has a Built For Your Barn® design and is suitable for use in sow barns, gestation buildings, nurseries, gilt development units and finishing facilities. It has a modular build, allowing for easy installation with a retrofit solution that helps eliminate constant replacement cycles.

Features

• Improves animal welfare
• Advanced system specialized for swine
• 14W LED equivalent to 125W incandescent
• Fully dimmable daylight and nighttime modes
• Durable, Built For Your Barn design
• Low-profile, wide beam angle
• Dim-to-Calm™ Technology
• Energy provider rebates

The Science

When completing your lighting system with an AgriShift Controller and ONCE® recommended lighting schedule you provide animals with a natural sunrise/sunset simulation, reducing stress caused by sudden changes in light. The Dim-to-Calm Technology fully dims to red, which swine perceive as darkness and allows the light to be used as a “service light” so workers can access the facility without disturbing sleep cycles.

• Dim-to-Calm technology provides daylight simulation and can act as a “service light” when fully dimmed
• A Built For Your Barn design uses techniques and materials that withstand harsh barn environment for years to come
• AgriShift lighting systems “shift” spectrum and intensity, meeting the individual needs of your animals

Electrical Specifications

• Nominal Power: 14W at full intensity
• Luminous Flux (nominal): 1,380 lm human photopic (120V); 1,000 lm human photopic (230V)
• Input Voltage: 120 VAC/60 Hz
• Beam Angle: 180°
• Light Output Equivalence: Up to 125W incandescent
• Spectral Output: Swine-specific full spectrum white
• Operating Temperature: -4° F to 104° F
• Dimmable Range: 100% to 5%, dims to red-white moonlight
• Dimmer Type: Phase modulation or Amplitude Control
• Environmental Ratings: Suitable for damp locations, RoHS Compliant
• Safety: Conforms to ANSI/UL STD 1598, Certified to Can/CSA STD. C22.2 NO. 250.0
• Rated Life: 50,000 hours
• Dimensions: 3.4" W x 4.3" L

MLM-S Base Formats

• - MLM-S 10W Junction Box Format
• - MLM-S 14W Junction Box Format
